The fridge and freezer in your Couple Condo are powered by 12 V electricity. The door can be locked with the small silver latch at the top right.
How to operate the fridge:

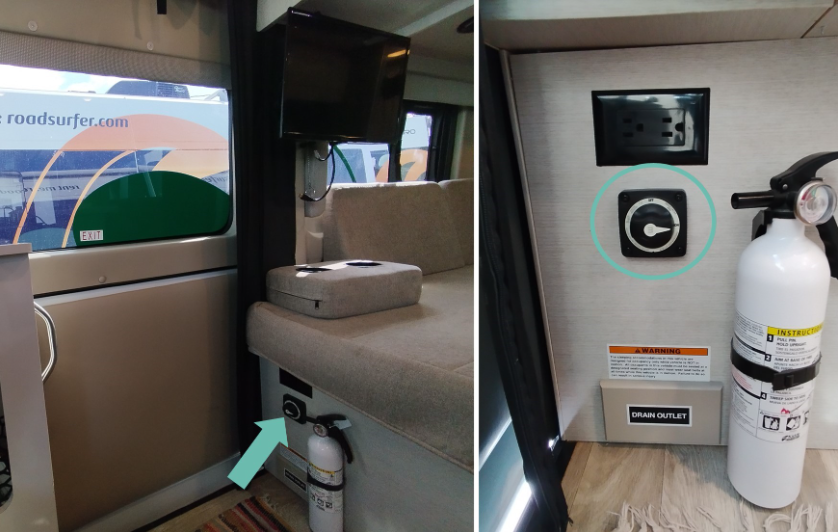

- The main battery switch by the door must be turned on:

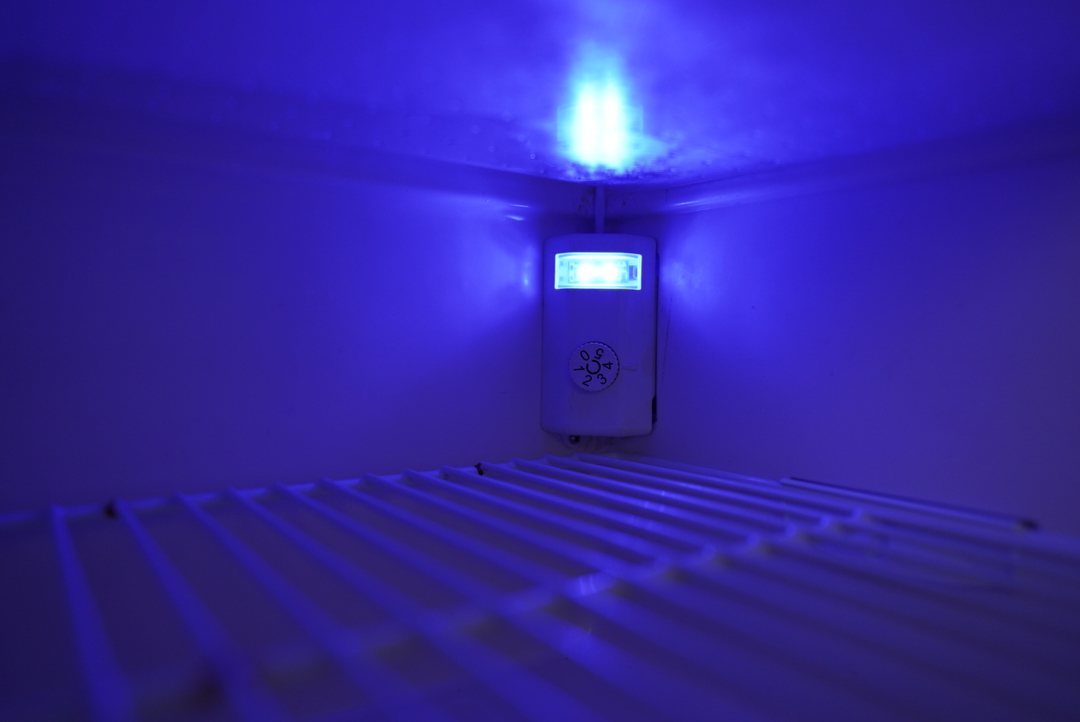

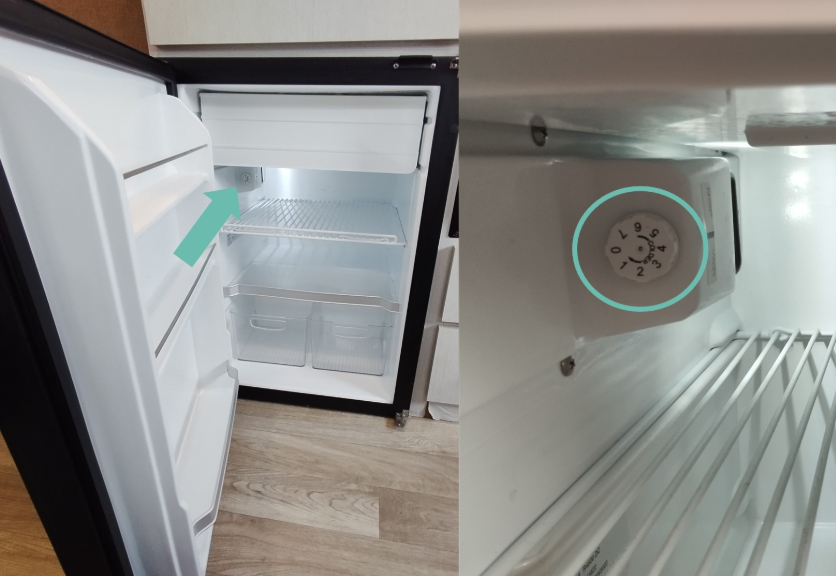

- There is a control dial inside the fridge to set the cooling level – we recommend level 3-4 (0 = off):
Watch the video:
Be a little patient 🥰
Please be aware that it may take a few hours until the fridge is fully cooled down! The warmer the environment is and the more food you put in, the longer it may take.
You can speed up the cooling process by:
- putting food in, that already comes from a fridge
- adding cool-packs/ice-packs
Troubleshooting
Please note that the fridge will drain the vehicle battery if you let the motorhome battery run completely flat. This would mean the engine will not start.
If the fridge does not turn on:
- Start the engine and try again.

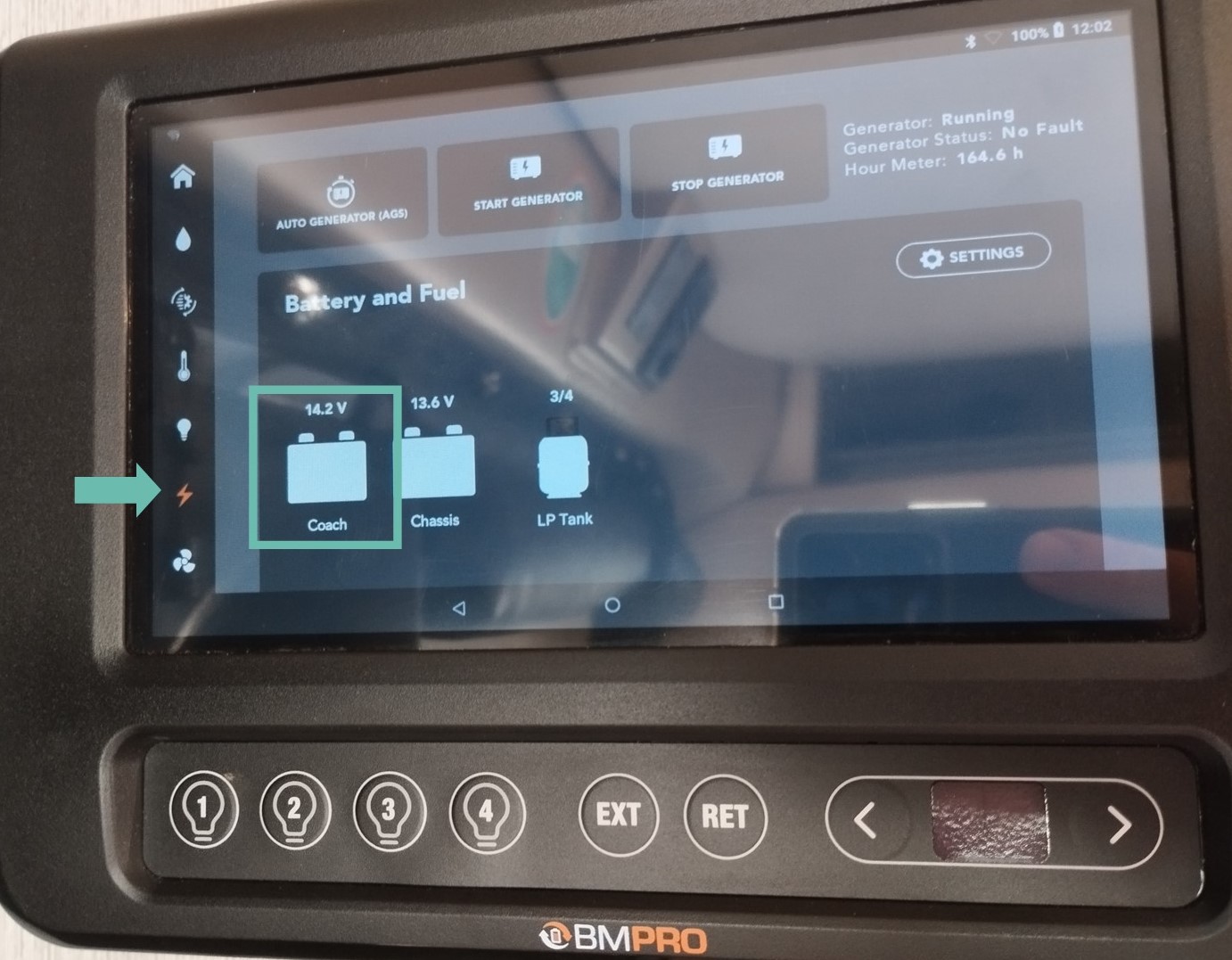

- Please check that the main power switch is on and that there is enough power (at least 12V) in the "coach" battery:

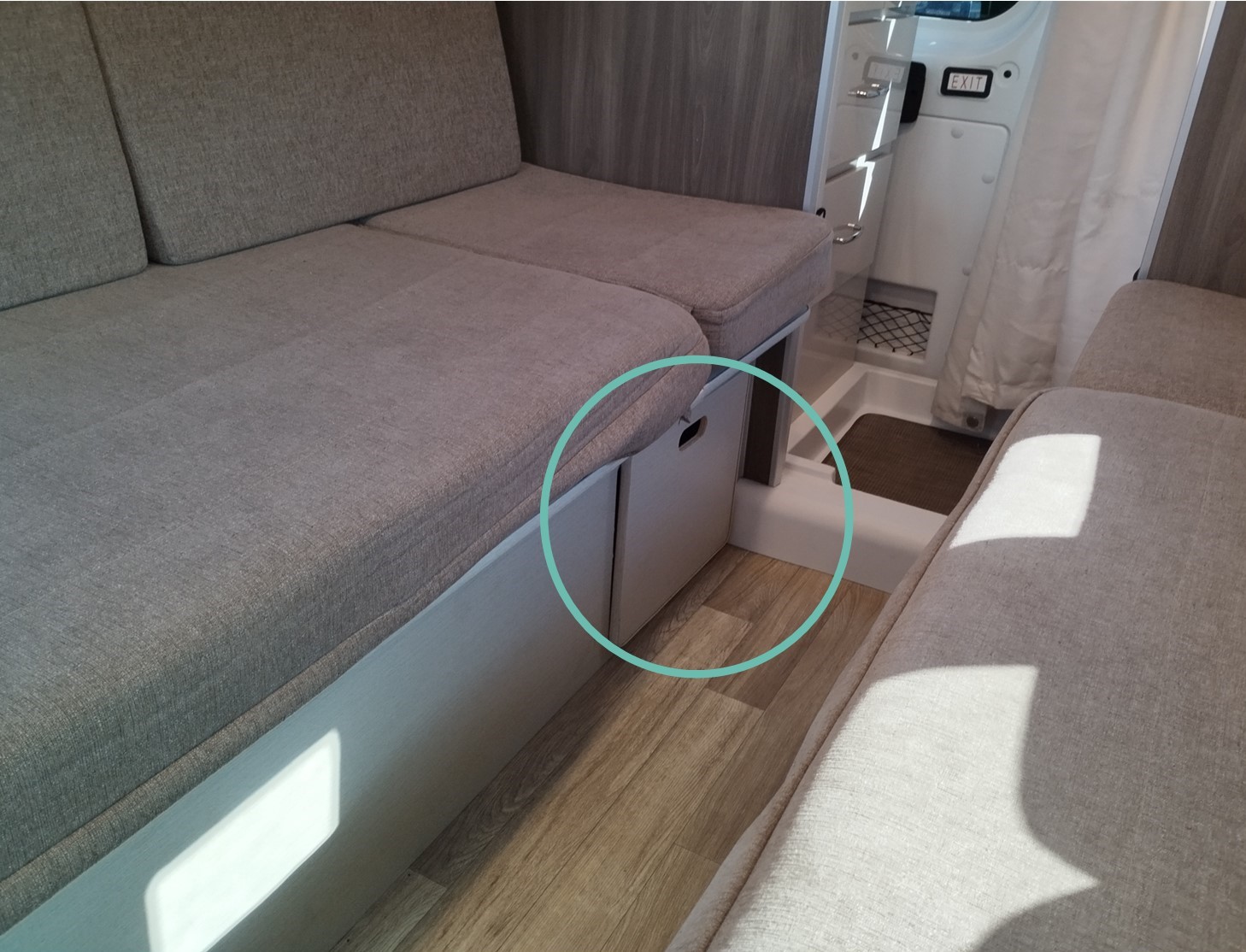

- Check the fuse for the fridge. You can find the fuse box under the rear seat bench on the passenger side:

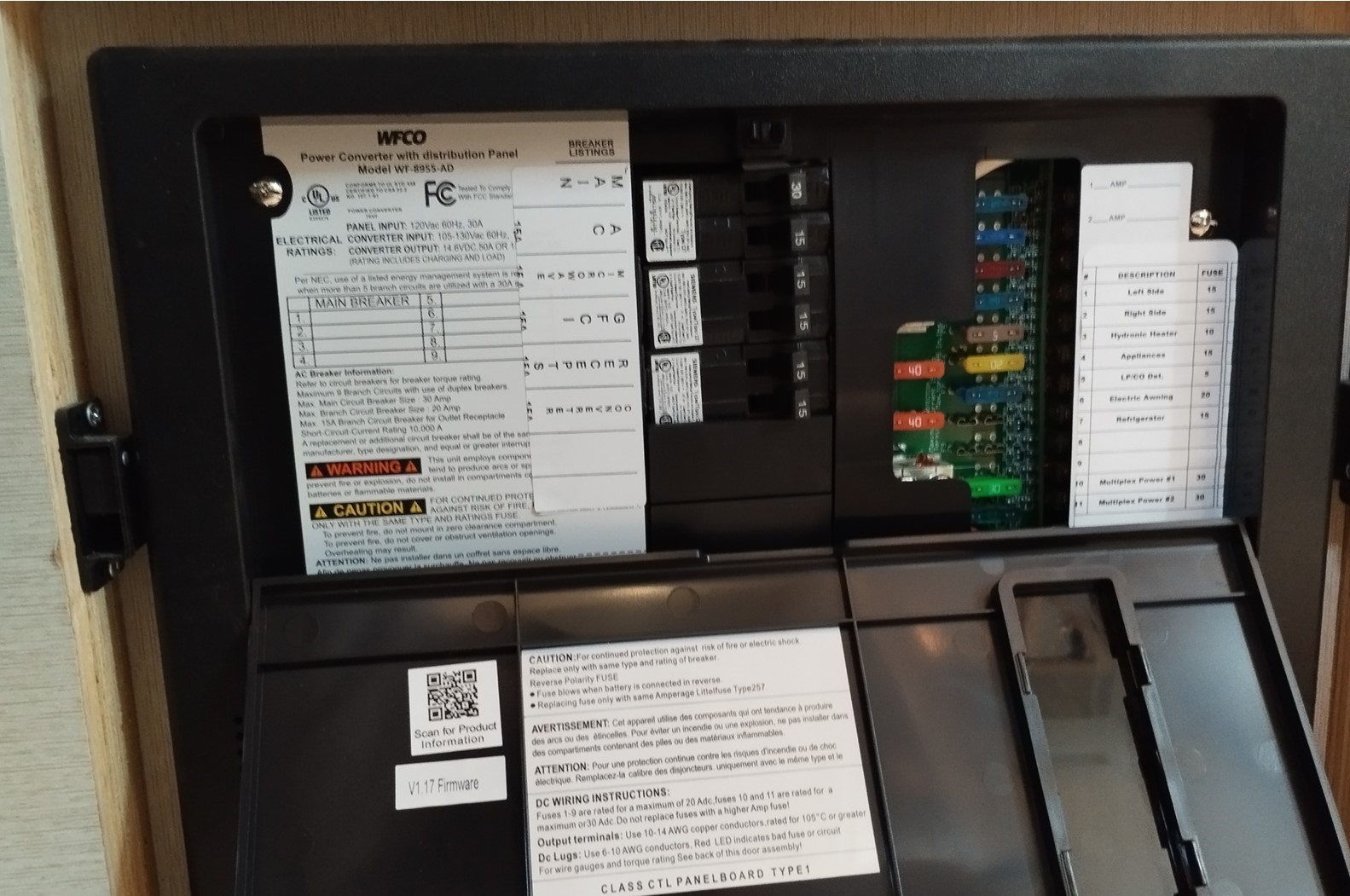

- Look for the fuse labeled "Refrigerator":
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

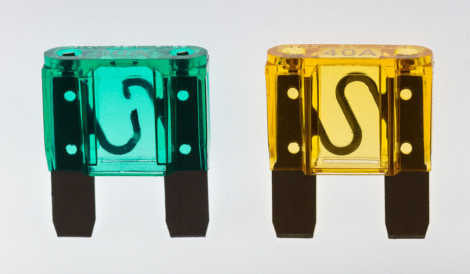

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.
