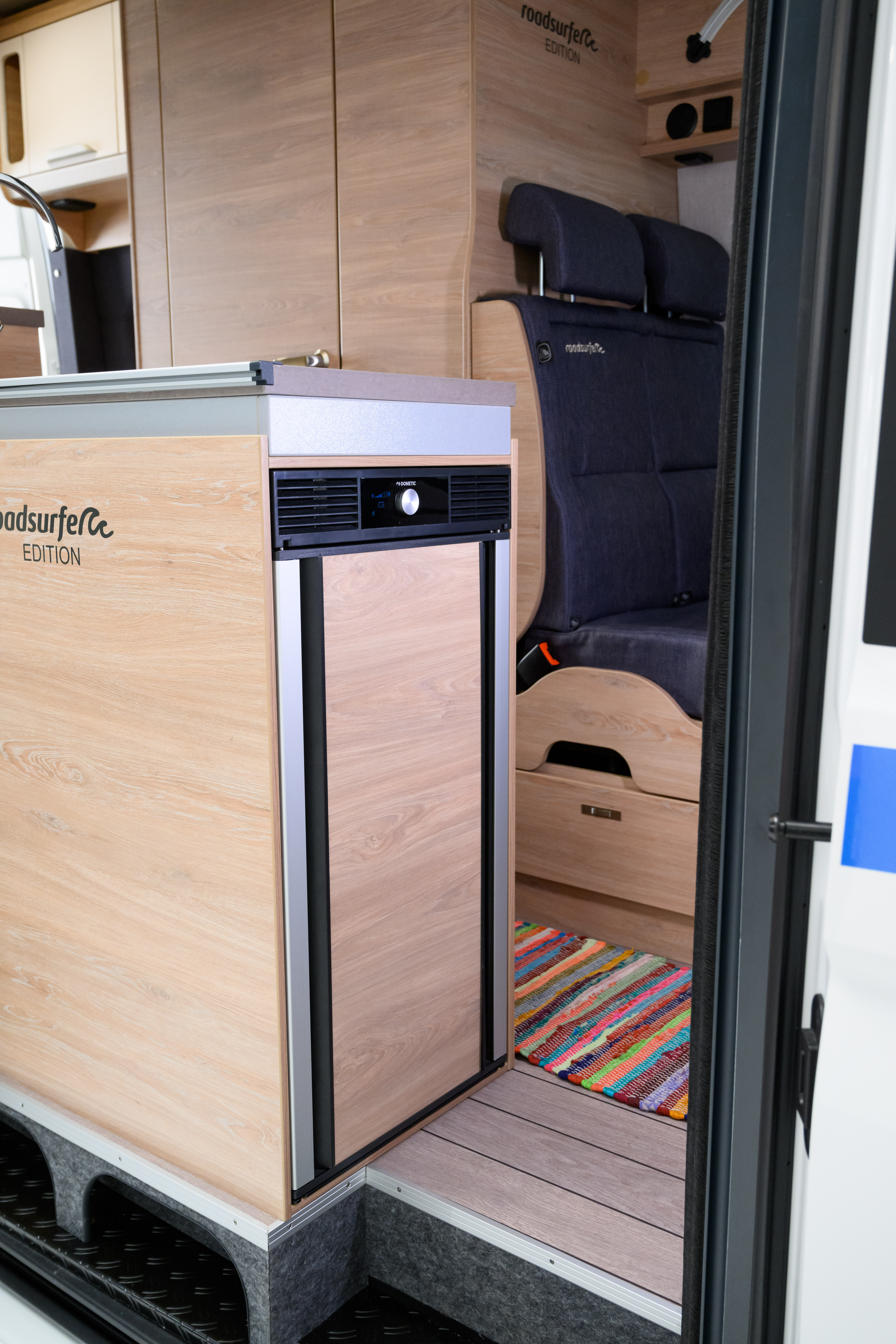

The refrigerator (69 l) with a small ice compartment is located at the front of the kitchen unit:

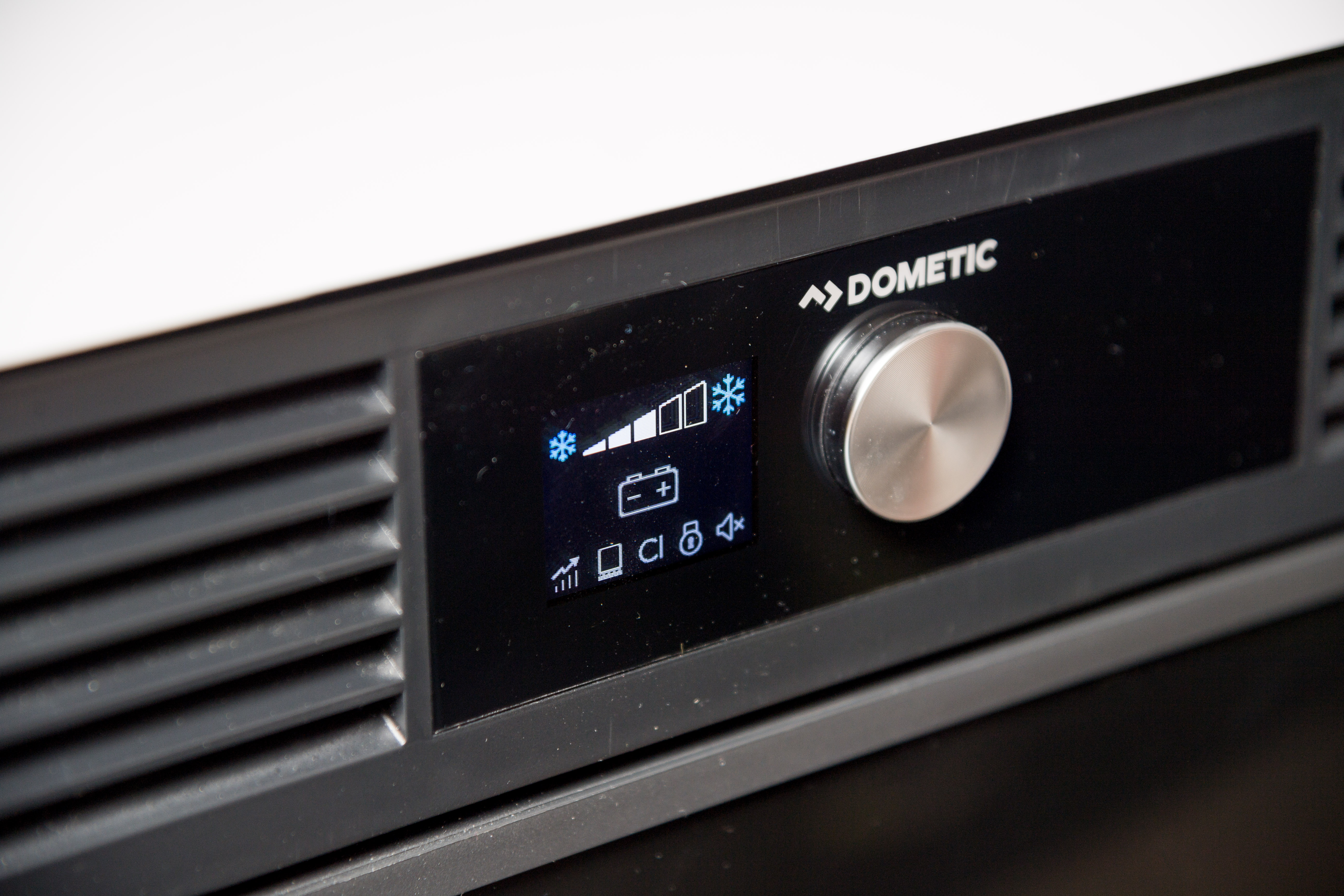

- Press and hold the silver button above the refrigerator door:
- Press the silver button twice and turn it to select the cooling level. We recommend level 3 (7-8°C). Press the silver button once more to confirm the cooling level.
- The door can be opened from both sides. Make sure you always pull from the centre of the handle. If one of the sides does not open properly, check that the opposite side is properly closed and correctly locked into the hinges.
Watch it in the video:
Be a little patient 🥰
Please be aware that it may take a few hours until the fridge is fully cooled down! The warmer the environment is and the more food you put in, the longer it may take.
You can speed up the cooling process by:
- putting food in, that already comes from a fridge
- adding cool-packs/ice-packs
Troubleshooting
What you should always check in case of malfunction:
- Battery charge level- Recharge if necessary or try operating from an external power source.
- Main power switch - Check if it is switched on, otherwise the living area is not supplied with power.
- The fuse of the refrigerator may be damaged.
Before any fuse is pulled, following safety measures is required:
- Turn off the engine and remove the key from the contact.
- Unplug the car from any external power supply.
- Pull carefully on the fuse by pulling from the sides.

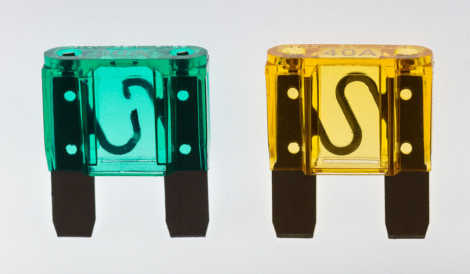

- A damaged fuse can be burnt or have the connector broken (see picture). If so, please replace it. You can find them at petrol stations and hardware stores.

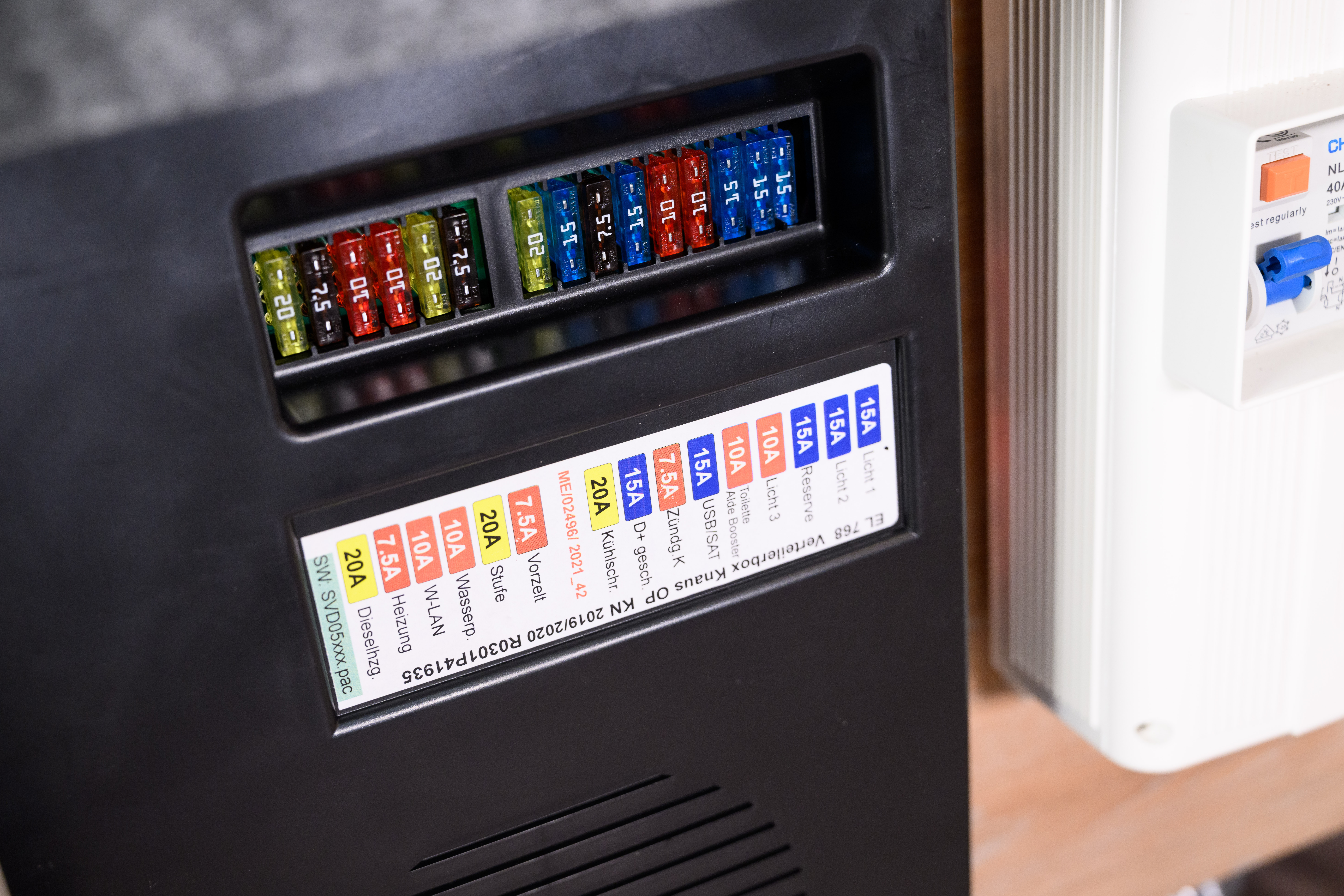

- The fuse box is located in the left cupboard under the bed. Check and replace if necessary this 20A fuse (7th from the left) labelled "Kühlschr.":
- To reset the system completely, drive the car a few metres and then try again to activate the refrigerator.
