To open the awning of your Road House you need to use the crank found in the boot compartment, attached to the cabinets at the very top.
Here is how the awning works:
Instructions on how to open the awning:
- Make sure the sliding door and passenger doors are closed before opening the awning.
- Insert the crank at rear end. A half turn against the opening direction prevents it from slipping off.
- Turn it in counter-clockwise direction until 50-100 cm out.
- Pull the legs of the awning out by clicking on the metal hinges to the side and keep on opening the awning with the crank. Lock the legs with the clip lock in the middle of the leg.
- Continue pulling the awning out until it is fully extended.
- Fasten the legs to the ground with pegs.
- Be careful when removing the crank not to hit the side of the car.
Attention:
- The awning is only for sun protection. DO NOT open during storms, strong winds or rain!
- Please retract during the night, for longer absences or before driving!
- Damage due to improper handling is not covered by the deductible!
The awning light

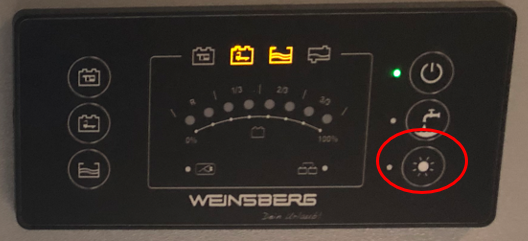

To operate the awning light switch on the on-board computer, and press the light symbol at the bottom to switch the light on and off.
Click here to go directly to the explanatory video:
