Oil level too high - Surfer Suite (VW T6.1 California Ocean)

If the engine oil warning light comes on and indicates that the oil level is too high, there are two possible causes that can be easily checked:

1. Incorrect Measurement

Long drives, mountain roads, or high outside temperatures can affect the measurement.

  • Park the vehicle (preferably in a shaded spot), turn off the engine, and wait for 20-40 minutes.
  • Start the engine again and check if the warning message reappears.
  • You can also manually check the oil level in the engine compartment.

How to Check the Oil Level:

  1. Park the vehicle on a level surface with the engine at operating temperature.
  2. Switch off the engine and wait for about 5 minutes.
  3. Open the bonnet to access the engine compartment.
  4. Pull the dipstick (yellow ring) out of the guide tube and wipe it clean with a cloth.
  5. Reinsert the dipstick fully into the guide tube until it stops.

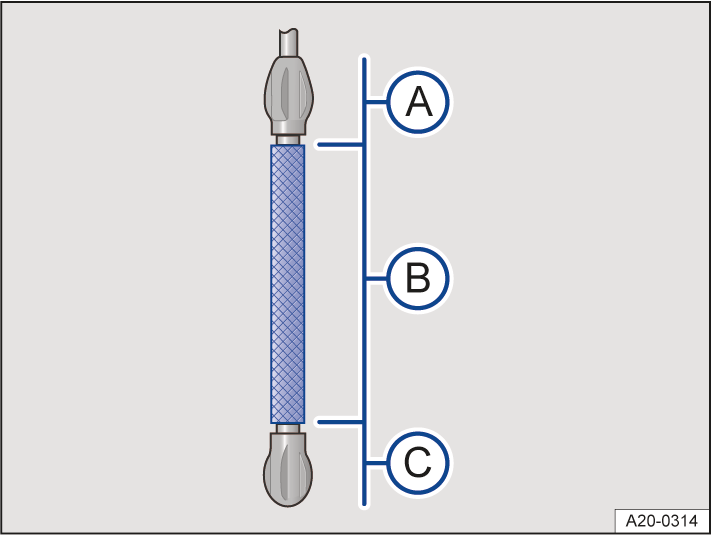

Oil Level Readings:

  • A: Above or higher: The engine oil level is too high.
  • B: Within normal range: The engine oil level is normal.
  • C: Too low: The engine oil level is low; please top up with the appropriate oil (e.g., 0W30).
    Bilder bearbeiten.jpg

Oil Level Too High

If the oil level is above A (MAX), the vehicle must be taken to a workshop to lower the oil level.

Oil Level Too Low

If the oil level is below C (MIN), you need to purchase motor oil to refill the system.
